Construction Site Surveillance Powered By AI

Summary

A prominent construction firm, operating in the U.S., was grappling with inefficiencies in real-time site monitoring, project progress visibility, and quality assurance. Traditional monitoring methods were resource-intensive, reactive, and lacked actionable insights. The client partnered with Folio3 AI to deploy an advanced AI Video Analytics solution that leveraged computer vision, deep learning models, and intelligent automation to transform the way their construction sites were monitored and managed.

Customer

The client is a mid-sized construction management firm headquartered in US, managing infrastructure, commercial, and large-scale residential developments. With employees, including project managers, site engineers, and quality inspectors, the company oversees more than 20 concurrent construction sites across the US. They specialize in modular construction, civil infrastructure, and large public-private partnership projects. Their goal was to adopt smart technologies to gain a competitive edge in a saturated and compliance-heavy construction landscape.

Understanding the Challenge

The client was facing critical bottlenecks across four primary operational dimensions, which triggered the need for an AI-powered video analytics platform

• Lack of Real-Time Surveillance & Safety Monitoring: Static CCTV systems lacked intelligence and required manual observation.
• Ineffective Progress Monitoring: Inability to generate visual comparisons between planned vs. actual project timelines, and no centralized dashboard to visualize site-wide construction states or milestone completions.
• Inconsistent Quality Control: Manual quality inspections failed to capture micro-defects or non-compliant structural elements. Lack of version-controlled records for visual inspections made re-evaluation difficult.
• Time-Intensive Documentation: Project managers lacked a scalable system for storing, tagging, and retrieving visual data causing delays. Regulatory audits required organized, timestamped records, which were difficult to maintain at scale.

Solution Features Offered

Folio3 designed and deployed a modular AI Video Analytics system integrated with the client's existing camera infrastructure, combining edge computing, deep learning, and cloud analytics. The following technical features were implemented:

Key features developed by Folio3 as a development partner for Imprint.Live include:

• BIM Integration: Progress was mapped against 4D BIM models, enabling accurate visual comparisons between actual site activity and planned construction timelines.
• Time-lapse Generation: AI automatically generated time-lapse videos for each construction phase, complete with date-stamped annotations to track site evolution over time.
• Central Dashboard: A custom dashboard built using React and backed by PostgreSQL, offering real-time daily progress analytics across all monitored construction sites.
• Visual Defect Detection: CNN-based models such as ResNet-50 and EfficientNet were trained to identify construction defects including cracks, spalling, misalignments, and surface inconsistencies.
• Automated Snagging: Defects were automatically tagged and logged with associated location metadata and priority scores, streamlining issue tracking and resolution workflows.
• Compliance Scoring: Real-time visual inspection data was matched against ASTM and OSHA standards to generate a quality compliance score for ongoing construction activities.
• Video Frame Extraction & Annotation: AI extracted and automatically labeled critical video frames for each construction phase, streamlining documentation, review, and training workflows.
• Document Indexing: Metadata tagging enabled keyword-based search of visual logs by location, team, or task, improving accessibility and auditability of construction records.
• Automated Daily Reports: The system generates daily visual summaries that capture site conditions, completed work, and flagged issues—automatically exported as PDFs or shared via REST API.

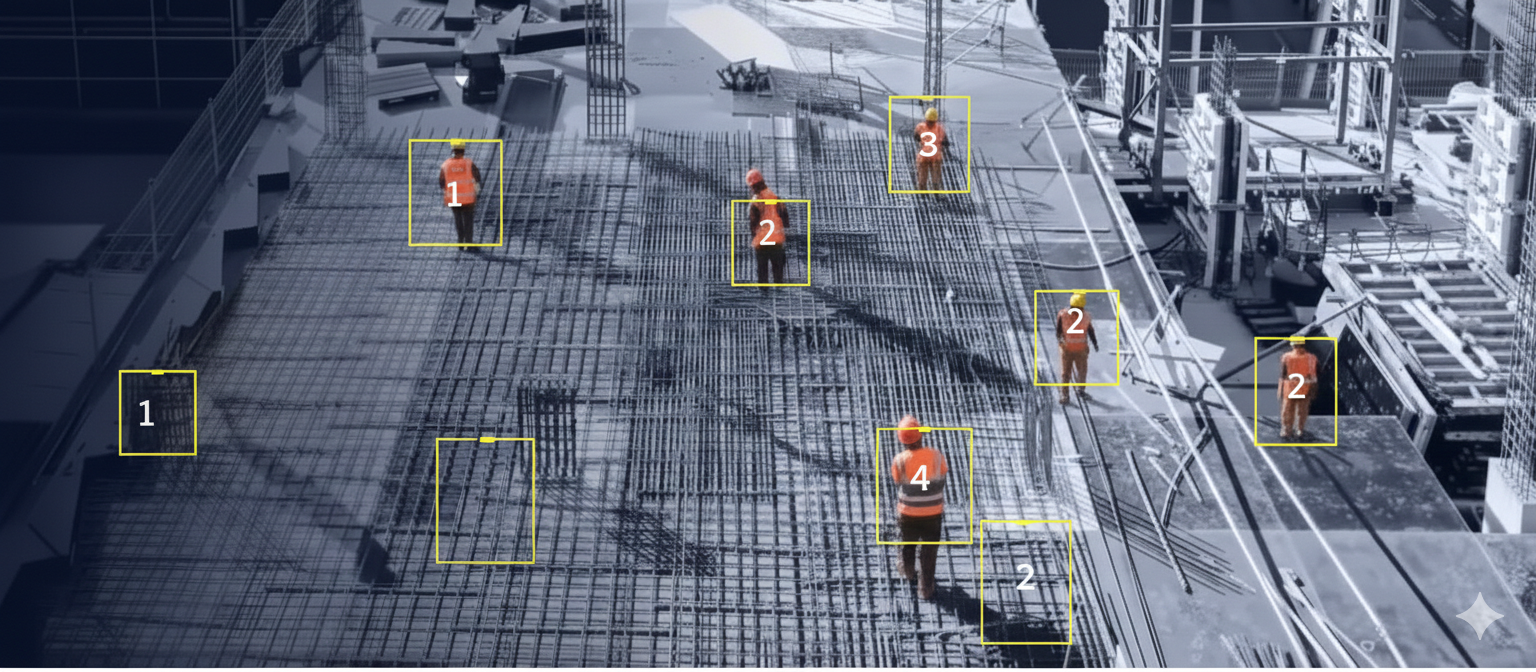

• Object Detection & Tracking: YOLOv7 and SSD models were used to detect and track workers, vehicles, and machinery within dynamic environments, ensuring real-time situational awareness and operational safety.
• PPE Compliance Detection: A specialized model was trained to detect whether workers wore safety gear such as helmets, vests, and gloves—helping enforce compliance and reduce on-site risk.
• Edge AI Processing: Deployed NVIDIA Jetson Nano devices on-site to perform real-time inference at the edge, significantly reducing latency and minimizing bandwidth consumption.
• Visual Change Detection: Computer vision models analyzed site footage over time using the Structural Similarity Index (SSIM) and change vectors to detect visual anomalies and progress shifts.

Result

Following the successful deployment of the AI video analytics system, the client reported measurable improvements that included an 87% reduction in manual surveillance workload, real-time progress monitoring allowed faster detection of delays and resource bottlenecks, helping project managers proactively reassign teams, and 90% accuracy in safety and intrusion detection.
